Keyboard Clutter, Keystroke Counts & Calculator Menus

Supplementary Material to Accompany HPCC Datafile Articles:

  • V27N1: "Keyboard Clutter, Keystroke Counts & Calculator Menus"

  • V27N2: "Optimizing the Calculator User Interface"

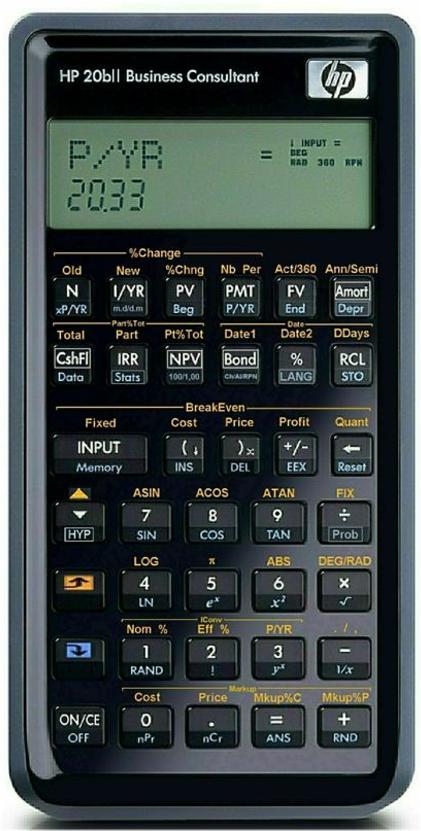

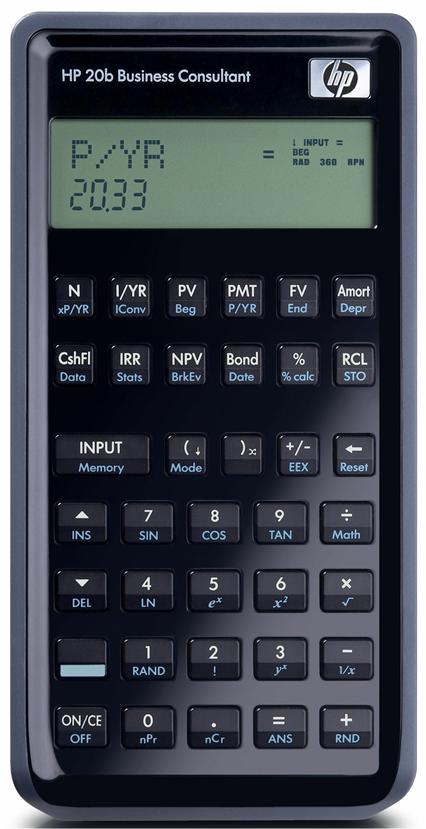

  • V27N3: "The HP20b Calculator: A Missed Opportunity?"

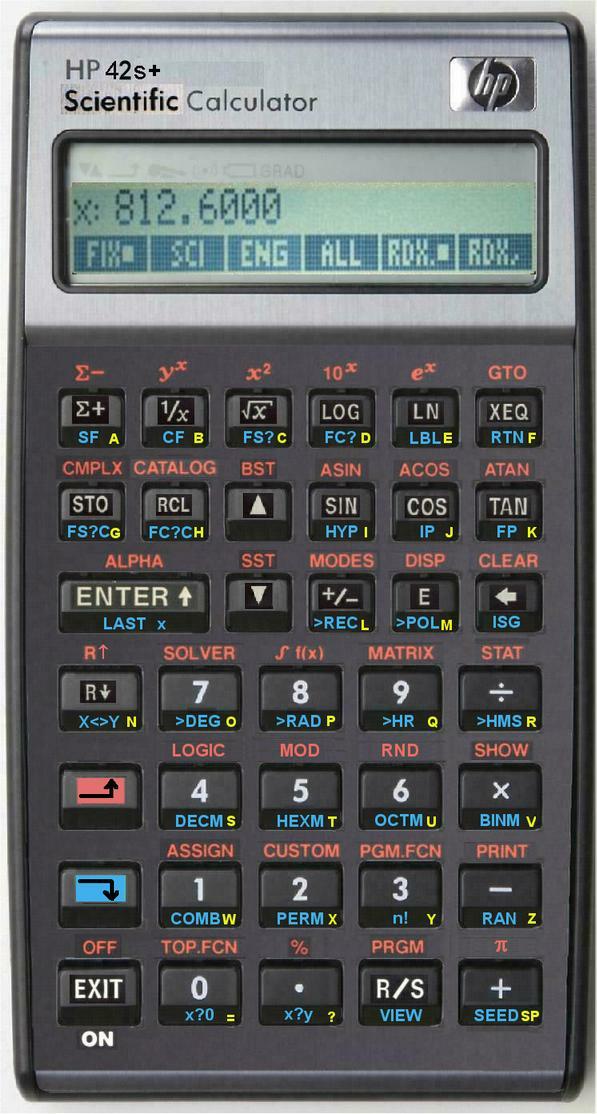

Plus the HP Solve Newsletter Issue 23 Article "Tweaking the HP42S"

Jake Schwartz 27 March 2011 Questions or Comments? email:jakes@pahhc.org

The complete keyboard metrics data for the Hewlett-Packard Classics Series calculators:


      HP 35 HP 45 HP 55 HP 65 HP 67 HP 70 HP 80

    tot # keys   35 35 35 35 35 35 35

    # generic shift keys (i.e. "f", "g")   0 1 2 3 3 0 1
        (gold) f, g f, f-1, g f, g, h   (gold)
    # marked generically-shifted fcns (f ASIN, etc.) 0 23 48 38 75 0 11
            f¯¹
    # unmarked generically-shifted fcns (f·¹ ASIN) 0 0 0 15 0 0 0

    # functional shift keys (i.e. "DSP", "STO")   1 3 3 5 4 2 0
      arc STO, RCL, FIX STO,RCL,FIX DSP, GTO, LBL, STO, RCL STO, RCL, DSP, GTO STO, DSP FIX, SCI
    # unmarked shifted fcns (DSP n, etc.)   3 28 30 58 59 13 10

    # 3-key shifted A     1 1 1 3
        f SCI GTO nn DSP . SF, CF, F? 0-3
    # fcns per 3-key shifted A     10 50 10 4

    # 3-key sequences B     4 1 4 1
        STO +-x÷ n f SCI  STO + - x ÷ GTO f a-e
    # fcns per 3-key seq B     9 10 9 5

    # 3-key sequences C     4 2   1
        RCL +-x÷ n STO , RCL   f LBL 0-9 A-E, g LBLf a-e
    # fcns per 3-key seq C     9 10   20

    # 3-key sequences D       4   4
          STO +-x÷   STO + - x ÷ 0-9, (i)
    # fcns per 3-key seq D       10   11

    # 3-key sequences E           1
              f GSB 0-9,A-E,(i), g GSBf a-e
    # fcns per 3-key seq E         0 21


    # primary keys   34 31 30 32 32 33 34   tot # keys - tot # shift keys

    tot # primary fcns   34 31 29 27 27 33 34   # primary keys - # functional shift keys

    tot # shift keys   1 4 5 8 7 2 1   # generic shift keys + # functional shift keys

    tot # 2-key shifted fcns   3 51 78 111 134 13 21   # marked shifted fcns + # unmarked shifted fcns

    tot # 3-key sequences   0 82 120 46 102 0 0   (# 3-key sequences A * # fcns per 3-key seq A) + (# 3-key sequences B * # fcns per 3-key seq B)+…+( E)

    tot # functions   37 164 227 184 263 46 55   # primary keys + tot # 2-key shifted functions + tot # 3-key sequences

    Keyboard Clutter (# fcns per key)   1.000 1.657 2.343 2.000 3.257 1.000 1.286   tot # fcns on keyboard / tot # keys

    Keystroke Count   40 379 545 387 601 59 76   # primary keys + (2 * tot # shifted functions) + (3 * tot # 3-key sequences)

    Keystroke count per function   1.081 2.311 2.401 2.103 2.285 1.283 1.382   Keystroke count / total # functions


HP35

HP 45

HP 55

HP 65

HP 67

HP 70

HP 80



      Ref: 65 Notes V2N1P11 Ref: 65 Notes V4N1P8

Detailed Individual Classic-Series Calculator Metrics Charts:

HP35A HP45A HP55A HP65A HP67A
HP70A HP80A



        Woodstock Series Key Functions and Metrics

  HP 21   HP 22   HP 25   HP 27   HP 29C

tot # keys   30   30   30   30   30

# generic shift keys (i.e. "f", "g")   1   1   2   2   2
  (blue)   (gold)   f, g   f, g   f, g
# marked shifted fcns (f ASIN, etc.)   16   18   44   45   48
      gold 0-9
# unmarked shifted fcns (f·¹ ASIN)   0   10

# functional shift keys (i.e. "DSP", "STO")   1   2   2   2   3
  DSP   STO,RCL   STO,RCL   STO,RCL   GSB,STO,RCL
# unmarked shifted fcns (DSP n, etc.)   10   20   16   20   33

# 3-key generic shifted A   1   5   3   3   4
  DSP •   gold •,STO +-x÷   f FIX, f SCI, f ENG   f FIX, f SCI, f ENG   f FIX, f SCI, f ENG, g LBL
# fcns per 3-key generic shifted A   10   10   10   10   10

# 3-key sequences B           4   8   4
          STO +-x÷   STO +-x÷, RCL +-x÷   STO +-x÷
# fcns per 3-key seq B           8   10   11

# 3-key sequences C           1       2
          GTO       STO, RCL
# fcns per 3-key seq C           50       6

# 3-key sequences D                   1
                  GTO
# fcns per 3-key seq D                   11

# 4-key sequences E                   4
                  STO +-x÷
# fcns per 4-key seq E                   6


# primary keys   29   29   28   28   28

tot # primary fcns   28   27   25   26   24

tot # shift keys   2   3   4   4   5

tot # 2-key shifted fcns   26   48   60   65   81

tot # 3-key sequences   10   50   112   110   107

tot # 4-key sequences   0   0   0   0   24

tot # functions   64   125   197   201   236

Keyboard Clutter (# fcns per key)   1.500   1.567   2.500   2.533   2.700

Keystroke Count   110   273   481   486   603

Keystroke count per function   1.719   2.184   2.442   2.418   2.555



HP 21

  HP 22   HP 25   HP 27   HP 29C

Detailed Individual Woodstock-Series Metrics Charts:

HP21A HP25A/C HP29C
HP22A HP27A



            Spice/Spike Series Key Functions and Metrics

  HP 31E   HP 32E   HP 33E/C   HP34C   HP 37E   HP38E/C

tot # keys   30   30   30   30   30   30

# generic shift keys (i.e. "f", "g")   1   2   2   3   1   2
  f   f, g   f, g   f, g, h   f   f, g
# marked shifted fcns (f ASIN, etc.)   28   53   53   64   18   44
                  f n, f ·   f n, f ·
# unmarked shifted fcns (f·¹ ASIN)                   11   11

# functional shift keys (i.e. "DSP", "STO")   2   2   2   4   2   2
  STO,RCL   STO,RCL   STO,RCL   GSB, GTO, STO,RCL   STO,RCL   STO,RCL
# unmarked shifted fcns (DSP n, etc.)   8   19   17   44   24   24

# 3-key generic shifted A   2   3   3   5   4   2
  f FIX, f SCI   f FIX, f SCI, f ENG   f FIX, f SCI, f ENG   f FIX, f SCI, f ENG, STO ·,RCL ·   STO +-x÷   STO ·, RCL ·
# fcns per 3-key generic shifted A   10   10   10   10   7   10

# 3-key sequences B   4   4   4   1       1
  STO +-x÷   STO +-x÷   STO +-x÷   h LBL       g GTO nn
# fcns per 3-key seq B   4   9   8   12       100

# 3-key sequences C       2   2   3       4
      STO ·, RCL ·   GSB nn, GTO nn   h SF, h CF, h F?       STO +-x÷
# fcns per 3-key seq C       6   50   4       7

# 3-key sequences D               1       1
              STO f, RCL f, GSB f, GTO f       RCL g
# fcns per 3-key seq D               7       2

# 3-key sequences E               4
              STO +-x÷
# fcns per 3-key seq E               12

# 3-key sequences F               2
              f SOLVE, f òxy
# fcns per 3-key seq F               6

# 4-key sequences G       4
      STO +-x÷ ·
# fcns per 4-key seq G       6


# primary keys   29   28   28   27   29   28

tot # primary fcns   27   26   24   23   27   26

tot # shift keys   3   4   4   7   3   4

tot # 2-key shifted fcns   36   72   70   108   53   79

tot # 3-key sequences   36   78   162   141   28   150

tot # 4-key sequences   0   24   0   0   0   0

tot # functions   99   200   256   272   108   255

Keyboard Clutter (# fcns per key)   1.967   2.800   2.800   3.400   1.567   2.433

Keystroke Count   207   500   650   662   217   634

Keystroke count per function   2.091   2.500   2.539   2.434   2.009   2.486

  HP 31E   HP 32E   HP 33E/C   HP34C   HP 37E   HP38E/C


Detailed Individual Spice/Spike-Series Metrics Charts:

HP31E HP32E HP33E/C HP34C
HP37E HP38E/C



          Voyager Series Key Functions and Metrics

  HP 10C   HP 11C   HP 12C   HP 15C   HP 16C

tot # keys   39   39   39   39   39

# generic shift keys (i.e. "f", "g")   1   2   2   2   2
  f   f, g   f, g   f, g   f, g
# marked shifted fcns (f ASIN, etc.)   34   61   46   55   64
          f n, f ·
# unmarked shifted fcns (f·¹ ASIN)           11

# functional shift keys (i.e. "DSP", "STO")   3   4   2   4   4
  STO, RCL, GTO   STO, RCL, GTO, GSB   STO, RCL   STO,RCL, GTO, GSB   STO,RCL, GTO, GSB
# unmarked shifted fcns (DSP n, etc.)   24   56   26   71   68

# 3-key generic shifted A   3   3   4   3   1
  FIX, SCI, ENG   FIX, SCI, ENG   STO +-x÷   FIX, SCI, ENG   f FLOAT
# fcns per 3-key generic shifted A   10   10   5   11   11

# 3-key sequences B   4   4   2   11   1
  STO +-x÷   STO +-x÷   STO ·, RCL ·   f X<>, f DSE, f ISG, STO +-x÷, RCL +-x÷   f WINDOW
# fcns per 3-key seq B   10   11   11   17   8

# 3-key sequences C   1   2       2   1
  GTO n n   f HYP, g HYP-1       f HYP, g HYP-1   f LBL
# fcns per 3-key seq C   80   3       3   16

# 3-key sequences D       1       3   3
      f LBL       f LBL, f SOLVE, f òxy   g SF, g CF, g F?
# fcns per 3-key seq D       15       15   6

# 3-key sequences E       3       3   2
      g SF, g CF, g F?       g SF, g CF, g F?   STO ·, RCL ·
# fcns per 3-key seq E       2       11   16

# 3-key sequences F       2       4
      STO ·, RCL ·       STO ·, RCL ·, GTO ·, GSB ·
# fcns per 3-key seq F       10       10

Misc 3-key sequences               6
              g MATRIX, g TEST, f DIM, f RESULT, RCL, STO
Tot # misc 3-key seq functions               66

# 4-key sequences G           1   12
          g GTO n n   f <> ·, f DSE ·, f ISG ·, STO +-x÷ ·, RCL +-x÷ ·, f LBL ·
# fcns per 4-key seq G           100   10


# primary keys   38   37   37   37   37

tot # primary fcns   35   33   35   33   33

tot # shift keys   4   6   4   6   6

tot # 2-key shifted fcns   58   117   83   126   132

tot # 3-key sequences   150   121   42   410   85

tot # 4-key sequences   0   0   100   120   0

tot # functions   243   271   260   689   250

Keyboard Clutter (# fcns per key)   1.923   2.795   2.128   2.795   2.795

Keystroke Count   601   630   727   1995   552

Keystroke count per function   2.473   2.325   2.796   2.896   2.208

  HP 10C   HP 11C   HP 12C   HP 15C   HP 16C


Detailed Individual Voyager-Series Metrics Charts:

HP10C HP11C HP12C HP15C HP16C HP12CPt

Keyboard Metric Computations Based On Fictitious Calculator Keyboards: What Happens When Various Keyboard Parameters Change One At A Time

A Real-Life Example - Increasing the Number of Keys And Decreasing the Number of Shifts: The HP67 versus HP97

An Opposite Real-Life Example - Decreasing the number of keys and increasing the number of functions: The HP18C versus the HP17B

Calculator Metrics for the HP41C - Clutter under control, Keystroke counts OUT OF CONTROL....

Onward to the complete keyboard metrics data for the HP32S, HP32SII, hp33s and HP35S calculators......Soft-key menus to the rescue

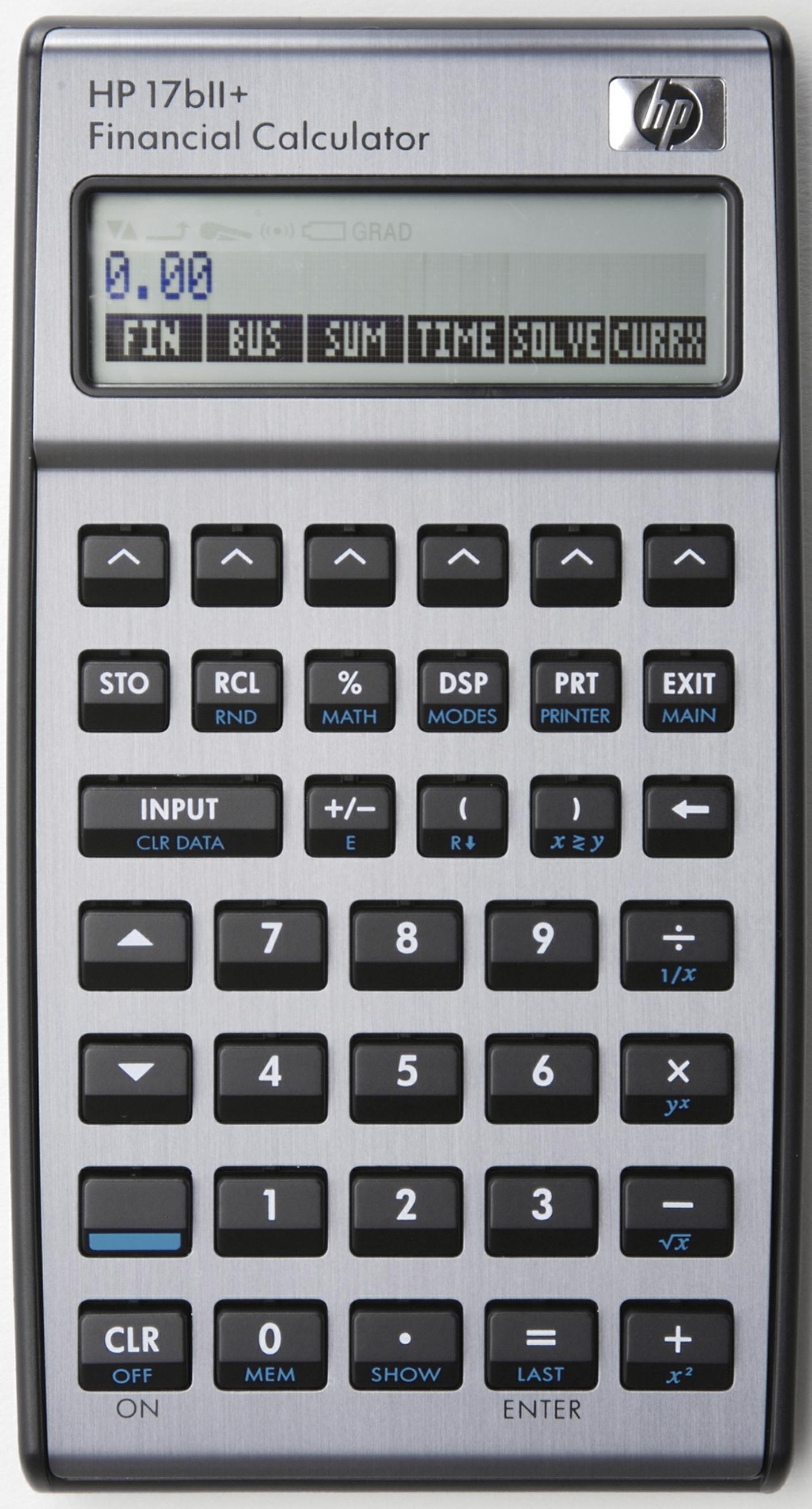

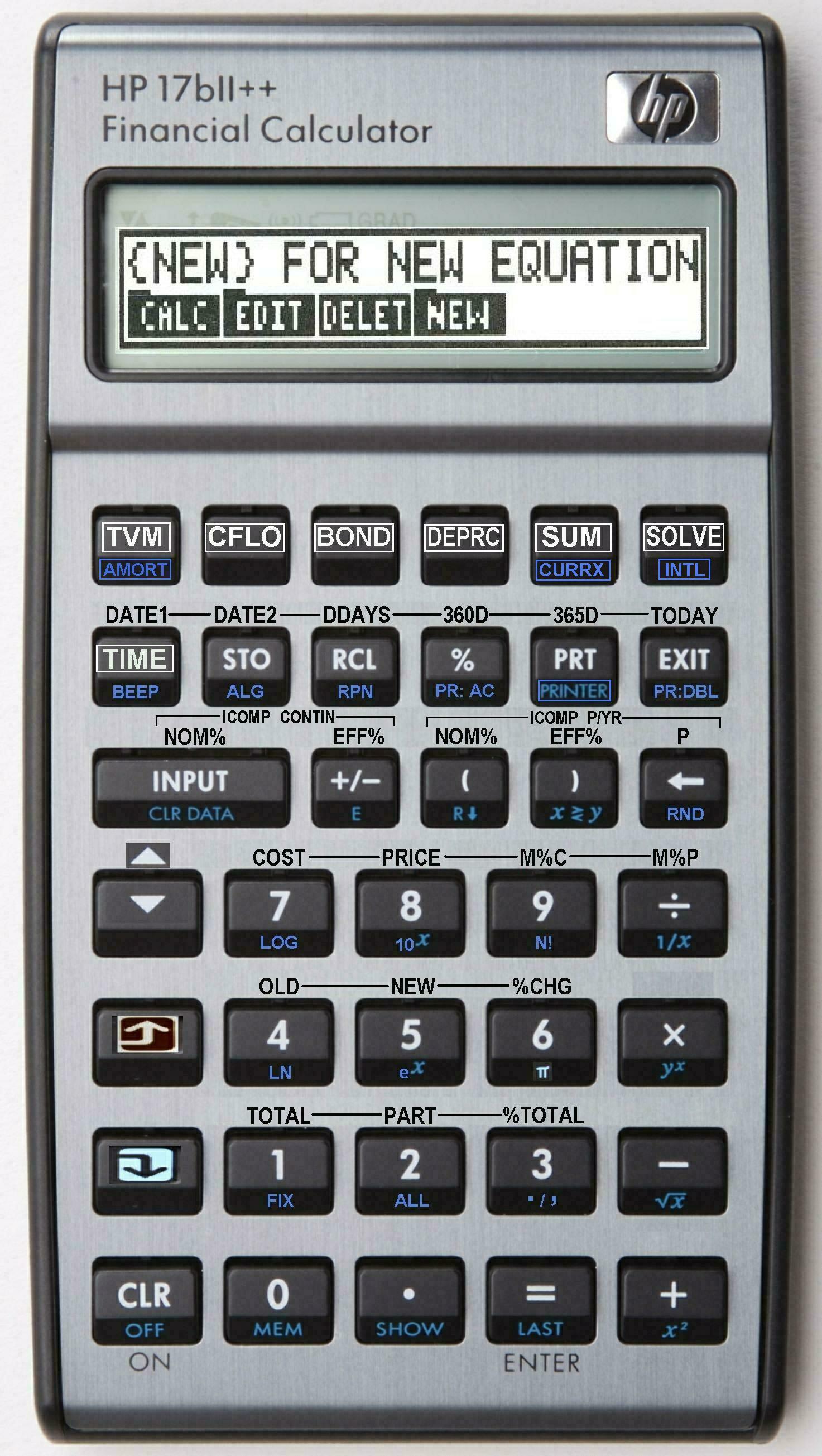

And finally, the wish-list machines: The HP 17BII++ and the HP 35S+
